Chef Automate Incident Creation App

[edit on GitHub]

ServiceNow provides cloud-based services that automate enterprise IT operations. ServiceNow specializes in IT service management (ITSM) applications and provides forms-based workflow application development. It supports third-party applications and data integrations. The most common integrations are configuration management database (CMDB), incident management, problem management, change management, user administration, and single sign-on authentication.

The Chef Automate Incident Creation app for ServiceNow integrates Chef Automate with ServiceNow. This app is a ServiceNow-certified app available from the ServiceNow store that enables you to generate incidents in the ServiceNow Incident Management environment whenever you have any failures in your Chef-managed platform. These failures are due to either infrastructure automation updates or automated compliance check failures. This integration with ServiceNow allows you to capture all failures across your automated infrastructure for resolution and tracking purposes by improving the effectiveness of both ServiceNow and Chef Automate applications and help reduce the entire repercussions of any failure scenarios.

ServiceNow and Chef Automate Flow

Key Features of Chef Automate Incident Creation App

  • Incident management for infrastructure and compliance automation — Creates ServiceNow incident tickets, alert/page operations or information security (for Chef failures or InSpec failures, respectively) to provide a resolution to the automation and compliance failures at the earliest and in concordance with a customer- or regulatory-mandated SLAs or OLAs.

  • Intelligent data management and event de-duplication — Promotes Chef Automate as a central data aggregator and restricts opening of a new incident tickets for the repeated failures by updating relevant fields in ServiceNow, such as the time of last failure. This helps reduce alert noise, in contrast to non-Chef Automate approaches that send data directly from managed nodes to ServiceNow.

  • Compliance-related integration opportunities with other capabilities on ServiceNow — Data stream of compliance events generated by the integration with ServiceNow leverages other applications on the ServiceNow platform. For example, governance and risk compliance (GRC) or security/incident management (SIEM) systems that have integrations with ServiceNow can now have access to this data. The data stream from InSpec through Chef Automate allows you to enhance the entire risk dashboard with real-time, continuous prioritized compliance events, rather than inundating the standardized data streams with meaningless, context-free data.

Installation

Chef Automate provides a full suite of enterprise capabilities for workflow, node visibility, and compliance. The integration between a Chef Automate server and a ServiceNow instance requires the following components:

  • Chef Automate Certified Application
  • Chef Automate Server

The installation personnel performing the task of integrating the Chef Automate Incident app in the ServiceNow ecosystem must have a basic understanding of the ServiceNow system.

System Requirements

The ServiceNow instance must be reachable on port 443 from Chef Automate.

Software Requirements

A running Chef Automate instance. A running ServiceNow instance.

Required ServiceNow Plugins

Install following ServiceNow plugins:

  • System Import Sets com.glide.system_import_set, min version 1.0.0.
  • Chef Automate Incident Creation 1.0.0 or higher
  • Chef Automate Server Installation.
  • Chef Automate 2 Server

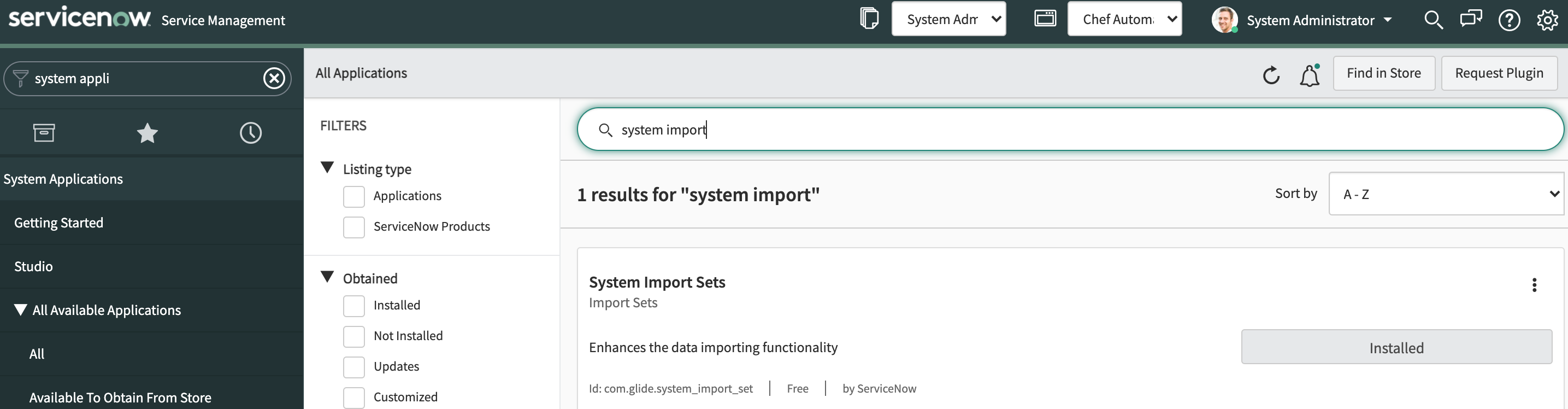

Locate the System Import Sets plugin by navigating to the System Applications > All Available Applications > All section in the ServiceNow application.

System Import Set Plugin

Install the Chef Automate Incident Creation App

The Chef Automate Incident Creation app exposes the REST API endpoint for communication between Chef Automate and the ServiceNow instance. Chef Automate sends HTTPS JSON notifications to the Chef Automate Incident Creation app in a ServiceNow instance to creates and update incident failures.

  1. Navigate to the ServiceNow store.
  2. Search for Chef Automate.
  3. Select the Chef Automate Incident Creation App.
  4. Select Get and follow the instructions by specifying your ServiceNow credentials.
  5. Open your ServiceNow Service Management application.
  6. Select System Applications > All Available Applications > All menu.
  7. Find the application using the filter criteria and search bar. You can search for the application by its Name or ID. If you cannot find an application, you may have to request it from the ServiceNow Store.
  8. Select Install.

Assign User Roles

The ServiceNow users must have the x_chef_automate.api role to set up the ServiceNow instance to receive data from Chef Automate. Changing the Application Properties defaults requires the x_chef_automate.admin role.

The Chef Automate Incident app has three default roles:

You can assign these roles to the existing or new ServiceNow users. These roles are part of the package. If there is a need for further restrictions, you can create the required roles and controls. Also, you can associate a single user with more than one role.

The x_chef_incident.user role is suitable for those users who require application access without administration rights. To alter the system properties, you need to have the x_chef_incident.admin role.

Refer to the following pages on how to create users and assign roles in ServiceNow:

Configuration

You can configure Chef Automate to send a notification to ServiceNow with REST APIs details exposed by the Chef Automate application, which are as follows:

  • Chef Infra Client run API: /api/x_chef_incident/client_run
  • Chef InSpec scan API: /api/x_chef_incident/inspec_scan

Chef Infra Client Run API

Follow these steps to report the failed client runs on nodes managed by Chef Automate:

  1. Confirm that you have the x_chef_automate.api role.

  2. Navigate to Settings from the Chef Automate menu.

  3. Select the Notifications link from General Settings section on the left.

  4. Select the Create Notification button.

  5. Enter the following information, which are mandatory:

    • Name: a unique name for the failed client run notification.
    • Webhook Type: ServiceNow notification type. Possible values are Slack, Webhook, and ServiceNow.
    • Failure Type: select Chef Infra Client run failures.
    • Webhook URL: ServiceNow client run API address.
    • Username and Password: a ServiceNow user credentials with x_chef_automate.api role. When you select Webhook type as ServiceNow, the app displays the Username and Password fields.
  6. Select the Test Connectivity button. The application checks that the values specified are correct and the connectivity between Chef Automate and the application establishes.

    A successful test displays the Notification test connected successfully for cl message for client run failures. Else, an error message shows detailing the connectivity or credentials issues and helps you resolve the error.

    Chef Automate Notification for CCR Failures

  7. Select Create Notification. The app saves the configuration details for the Chef Automate client runs notifications.

Chef InSpec Scan API

Follow these steps to report the failed Chef InSpec scans on node managed by Chef Automate:

  1. Confirm that you have the x_chef_automate.api role.

  2. Navigate to Settings from the Chef Automate menu.

  3. Select the Notifications link from General Settings section on the left.

  4. Select the Create Notification button.

  5. Enter the following information, which are mandatory:

    • Name: a unique name for the failed client run notification.
    • Webhook Type: ServiceNow notification type. Possible values are Slack, Webhook, and ServiceNow.
    • Failure Type: select InSpec compliance scan failures.
    • Webhook URL: ServiceNow Chef InSpec scan API address.
    • Username and Password: a ServiceNow user credentials with x_chef_automate.api role. When you select Webhook type as ServiceNow, the app displays the Username and Password fields.
  6. Select the checkbox to send the compliance scan notification only when critical control failures occurs.

  7. Select the Test Connectivity button. The application checks that the values specified are correct and the connectivity between Chef Automate and the application establishes.

    A successful test displays the Notification test connected successfully for com message for compliance scan failures. Else, an error message shows detailing the connectivity or credentials issues and helps you resolve the error.

    Chef Automate Notification for InSpec Scan Failures

  8. Select Create Notification. The app saves the configuration for the Chef Automate InSpec scans notifications.

Configure Application Properties

The Chef Automate Incident App has nine configurable Application Properties. You must have the admin or x_chef_incident.admin roles to change the default values in the Application Properties.

Follow these steps to alter the default values in the Application Properties screen:

  1. Navigate to the ServiceNow application.

  2. Select the Chef Incidents > Properties option from the left navigation pane. The Chef Incident Properties screen appears.

    Chef Automate Incident Properties
  3. Make the required changes.

  4. Select Save.

ServiceNow Config Page

x_chef_incident.association
Used to associate a Chef Infra Client run record with an Incident record. The possible values are: cookbook and node. Default: cookbook.

Setting the value to cookbook creates an incident for the failed cookbook. All failing Chef Infra Client runs on nodes associates with the corresponding incident. cookbook is the default value as the number of nodes exceeds the number of cookbooks. The short description of the incident indicates the failed cookbook:

CCR Failed Cookbook Description

The Chef Infra Client runs tab of the incident displays the associated client runs. Setting the value to node creates an incident for each failed node. All failing Chef Infra Client runs for a node associates with the corresponding incident. The short description of the incident indicates the failed node.

CCR Failed Node Description

x_chef_incident.scan_association

Used to associate the Chef InSpec scan record with an incident record. The possible values are: profile and node. Deault: profile.

Setting the value to profile creates an incident for the failed Chef InSpec compliance profile. All Chef InSpec scans on failing nodes associates with the corresponding incident. profile is the default value as the number of nodes exceeds the number of profiles. The short description of the incident indicates the failed profile.

Scan Failed Profile Description

The Chef InSpec scans tab of the incident displays the associated Chef InSpec scans. Setting the value to node creates an incident for each failed node. All Chef InSpec scans failing for a node associates with the corresponding incident. The short description of the incident indicates the failed node.

Scan Failed Node Description

x_chef_incident.assigned_to

Used to set up the ServiceNow user ID to assign incidents raised by the application. The corresponding group assigns automatically to the incident if the user is in an assignment group. Default: blank.

x_chef_incident.assignment_group

Used to set up a group rather than an individual user in the x_chef_incident.assigned_to property to assign the incident to a group. Default: blank.

x_chef_incident.impact

Used to set an impact value in an incident raised by the application. Possible values are 1, 2 or 3. Default: 2.

x_chef_incident.urgency

Used to set an urgency value in an incident raised by the application. Possible values are 1, 2 or 3. Default: 2.

x_chef_incident.retention_days

Used to define number of days to maintain the Chef Infra Client run and Chef InSpec scan records in ServiceNow. Default: 30.

The ServiceNow app deletes these records of the corresponding closed incidents, deleted incidents, and the removed incidents from the Chef Infra Client run or Chef InSpec scan record by a user update.

x_chef_incident.logging.enabled

Used to flag the logging with enable or disable status. Once enabled, you can view the logs from the Chef incidents > Logs menu and the System logs > Application logs menu by authorized users. Default: No.

x_chef_incident.logging.verbosity

Used to debug the data in ServiceNow. Enables the selected logging level and is visible in logs. The possible values are debug, warn, info, and error. Default: error.

Roles

You can associate a single user with more than one role.

Role x_chef_incident.admin

You can assign the x_chef_incident.admin role to a user other than a System Administrator to allow another user to manage the application properties and logs.

The System Administrator authorization includes access to the tasks in the Admin role.

The Admin role grants user access to the:

  • Chef incidents menu
  • Client runs menu item
  • Chef InSpec scans menu item
  • Properties menu item
  • Support menu item
  • Logs menu item

Role x_chef_incident.user

The x_chef_incident.user role is suitable for those users who require application access without administration rights. The role grants a user access to the:

  • Chef Incidents menu
  • Chef Infra Client runs menu item
  • Chef InSpec scans menu item
  • Support menu item

Note

Client run and Chef InSpec scan records are linked to incidents and is appropriate to assign this role to users who manage incidents in ServiceNow.

Role x_chef_incident.api

The x_chef_incident.api role is suitable for users responsible for integrating the Chef Automate data into ServiceNow. We recommend creating a new user specifically for this role. The Chef Automate Incident App requires the API role to set up communication with Chef Automate.

Uninstalling

To uninstall the Chef Automate Incident App:

  1. In the ServiceNow instance, navigate to the System Applications > Applications menu.
  2. Open the Downloads tab and select the Chef Automate Incident Creation link.
  3. Navigate to the Related Links section.
  4. select Uninstall.
